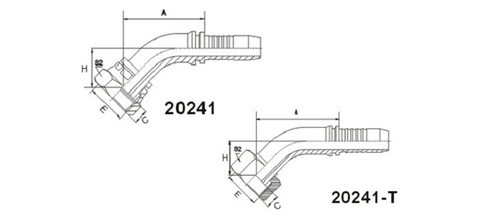

20241/20242
20241T/20242T
45°Metric Female Flat Seal
| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | S1 |
| 20241-14-04 | M14X1.5 | 6 | 4 | 40.5 | 8.5 | 18.5 |
| 20241-14-05 | M14X1.5 | 8 | 5 | 42.7 | 8.5 | 19.3 |
| 20241-16-05 | M16X1.5 | 8 | 5 | 44.4 | 8.5 | 20 |
| 20241-18-06 | M18X1.5 | 10 | 6 | 45.7 | 8 | 21.4 |
| 20241-22-08 | M22X1.5 | 12 | 8 | 58.9 | 10 | 24 |
| 20241-30-12 | M30X1.5 | 20 | 12 | 78.1 | 11 | 30 |
| 20241-36-16 | M36X2 | 25 | 16 | 85.7 | 13 | 31.5 |
| 20241-42-20 | M42X2 | 32 | 20 | 97.3 | 15 | 36.6 |
| 20241-27-10T | M27X1.5 | 16 | 10 | 68.6 | 10 | 24.3 |
| 20241-36-12T | M36X2 | 20 | 12 | 75 | 13 | 27.5 |
| 20241-36-14T | M36X2 | 22 | 14 | 77.3 | 13 | 27 |
| 20241-39-16T | M39X2 | 25 | 16 | 83.9 | 13 | 29.7 |
| 20241-45-20T | M45X2 | 32 | 20 | 94.5 | 15 | 33.8 |
| 20241-52-20T | M52X2 | 32 | 20 | 94.5 | 17 | 33.8 |
| 20241-52-24T | M52X2 | 40 | 24 | 108.5 | 17 | 37.7 |
| 20241-60-28T | M60X2 | 45 | 28 | 118.7 | 20 | 43.6 |
| 20241-64-32T | M64X2 | 50 | 32 | 127.8 | 23 | 45.6 |
| 注： 1. 表中代号用于编织软管； 2. 如需用于缠绕软管代号改为20242-xx-xx | ||||||
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20242-xx-xx； | ||||||
