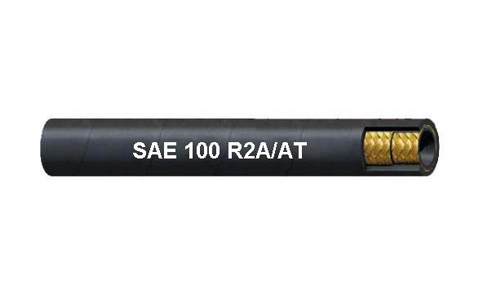

High persure,steel wire reinforced,rubber covered hydraulic hose
| 公制规格SIZE | 英制规格SIZE | SAE短划线规格 | 内径 | 增强层直径 | 外径 | 最大工作压力 | 试验压力 | 最小爆破压力 | 最小弯曲半径 | 参考重量 | ||||||||
| I.D | W.D | O.D | ||||||||||||||||
| 最小 | 最大 | 最小 | 最大 | A型 | AT型 | W. P | P.P | B.P | min B.R | W.T | ||||||||
| mm | inch | Dash | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 5 | 3/16 | -03 | 4.6 | 5.4 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.54 | 90 | 0.32 |
| 6.3 | 1/4 | -04 | 6.2 | 7.0 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.94 | 100 | 0.36 |
| 8 | 5/16 | -05 | 7.7 | 8.5 | 13.7 | 14.9 | 18.3 | 19.8 | 17.3 | 29.7 | 4310 | 59.5 | 8630 | 119 | 17255 | 4.53 | 115 | 0.45 |
| 10 | 3/8 | -06 | 9.3 | 10.1 | 16.1 | 17.3 | 20.6 | 22.2 | 19.7 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.54 |
| 12.5 | 1/2 | -08 | 12.3 | 13.5 | 19.0 | 20.6 | 23.8 | 25.4 | 23.1 | 24.5 | 3550 | 49 | 7110 | 98 | 14210 | 7.09 | 180 | 0.68 |
| 16 | 5/8 | -10 | 15.5 | 16.7 | 22.2 | 23.8 | 27.0 | 28.6 | 26.3 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 8.07 | 205 | 0.80 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 26.2 | 27.8 | 31.0 | 32.5 | 30.2 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 9.45 | 240 | 0.94 |
| 25 | 1 | -16 | 25.0 | 26.4 | 34.1 | 35.7 | 38.5 | 40.9 | 38.9 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 11.81 | 300 | 1.35 |
| 31.5 | 1 1/4 | -20 | 31.4 | 33.0 | 43.2 | 45.6 | 49.2 | 52.4 | 49.6 | 11.3 | 1640 | 22.7 | 3290 | 45.5 | 6600 | 16.54 | 420 | 2.15 |
| 38 | 1 1/2 | -24 | 37.7 | 39.3 | 49.6 | 52.0 | 55.6 | 58.7 | 56.0 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 19.69 | 500 | 2.65 |
| 51 | 2 | -32 | 50.4 | 52.0 | 62.3 | 64.7 | 68.3 | 71.4 | 68.6 | 7.8 | 1130 | 15.7 | 2280 | 31.5 | 4570 | 24.80 | 630 | 3.42 |
CONSTRUCTION:
This hose shall consist of an inner tube of oil resistant synthetic rubber,two braids of steel wire reinforcement,and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40°C~+100°C.
