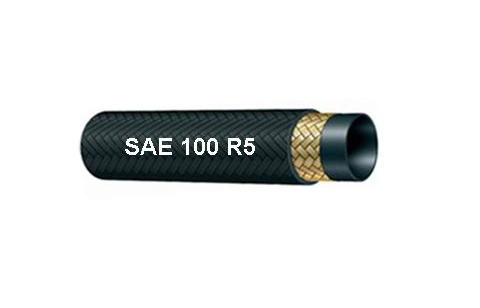

Single wire braid,textile covered hydraulic hose
| 公制规格SIZE | 英制规格SIZE | SAE短划线规格 | 内径 | 外径 | 最大工作压力 | 试验压力 | 最小爆破压力 | 最小弯曲半径 | 参考重量 | ||||||
| I.D | O.D | ||||||||||||||
| 最小 | 最大 | 最小 | 最大 | W. P | P.P | B.P | min B.R | W.T | |||||||
| mm | inch | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 5 | 3/16 | -04 | 4.8 | 5.5 | 12.7 | 13.7 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 2.95 | 75 | 0.24 |
| 6.3 | 1/4 | -05 | 6.4 | 7.2 | 14.3 | 15.3 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.35 | 85 | 0.28 |
| 8 | 5/16 | -06 | 7.9 | 8.7 | 16.7 | 17.6 | 15.7 | 2270 | 31.5 | 4570 | 63 | 9135 | 3.94 | 100 | 0.35 |
| 11 | 13/32 | -08 | 10.3 | 11.1 | 18.9 | 20.0 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 4.53 | 115 | 0.38 |
| 12.5 | 1/2 | -10 | 12.7 | 13.7 | 22.8 | 24.0 | 12.2 | 1770 | 24.5 | 3550 | 49 | 7105 | 5.51 | 140 | 0.51 |
| 16 | 5/8 | -12 | 15.9 | 17.0 | 26.8 | 28.0 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 6.50 | 165 | 0.68 |
| 22 | 7/8 | -16 | 22.2 | 23.3 | 30.6 | 32.2 | 5.6 | 810 | 11.2 | 1620 | 22.4 | 3250 | 7.28 | 185 | 0.70 |
| 29 | 1 1/8 | -20 | 28.6 | 29.8 | 37.3 | 38.9 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 9.06 | 230 | 0.80 |
| 35 | 1 3/8 | -24 | 34.9 | 36.1 | 43.7 | 45.2 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 10.43 | 265 | 0.93 |
| 46 | 1 13/16 | -32 | 46.0 | 47.2 | 55.2 | 57.6 | 2.4 | 350 | 4.9 | 700 | 9.8 | 1420 | 13.19 | 335 | 1.32 |
| 60 | 2 3/8 | -40 | 60.3 | 61.9 | 71.8 | 74.2 | 2.4 | 350 | 4.9 | 700 | 9.8 | 1420 | 24.02 | 610 | 2.96 |
| 76 | 3 | -48 | 76.24 | 77.8 | 89.3 | 91.7 | 1.4 | 200 | 2.8 | 410 | 5.6 | 810 | 33.07 | 840 | 4.10 |
CONSTRUCTION:
This hose shall consist of an inner tube of oil resistant synthetic rubber, a single wire braid reinforcement and a fiber braided cover.
APPLICATIONS:
This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40°C~+100°C
